Nickel Alloy Wireline Pulling Tool Fishing OD 1.375 Inch

Brand Name : Ruixin

Model Number : 2inch 2.5inch 3inch 3.5inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Delivery Time : 2-4weeks

Packaging Details : Wooden Box

Material : Alloy Steel&Nickel Alloy

Size : 2inch 2.5inch 3inch 3.5inch 4inch 5inch

Fish Neck : 1.375inch 1.75inch 2.313inch 3.125inch

Actual OD : 1.81inch~

Fishing OD : 1.375inch~2.61inch

Connection : SR,QLS,BLQJ,HDQRJ

Contact Now

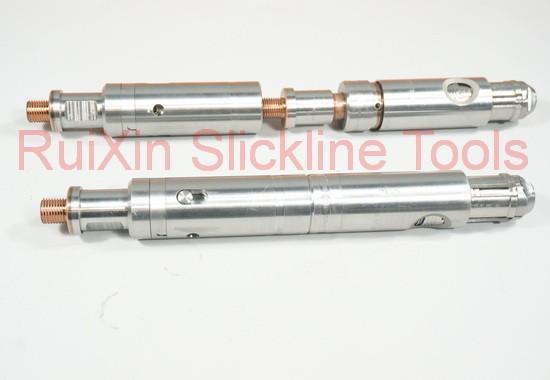

Nickel Alloy Wireline Pulling Tool Fishing OD 1.375 Inch

GR Pulling Tool Wireline Pulling Tool

Ⅰ. Introduction

GR pulling tool is composed of GU shear up adaptor (upward shear adaptor) and GS pulling tool (without shear pin), which can be released by upward shear. It is usually used for fishing lock mandrel, packers ,and bridge plugs with internal fish necks.

Ⅱ. Technical parameters of common specifications

Szie

Actual OD

FN

Fishing OD

Connection

Lower connection thread

2″

1.81″

1.375″

1.38″

15/16″-10UN

1/2-13UN″

2.5″

2.25″

1.375″

1.81″

15/16″-10UN

5/8-11UN″

3″

2.72″

1.75″

2.31″

1-1/16″-10UN

5/8-11UN″

3.5″

3.11″

2.313″

2.62″

1-1/16″-10UN

5/8-11UN″

Technical parameters can also be according to user requirements

III. Maintenance

1. After the tool is disassembled, check the damage of each component and replace the damaged parts.

2. When assembling, apply a thin layer of grease on the thread surface.

3. After assembly, the fishing neck is attached with thread protector and marked for later use.
